Name: Semi-Automatic Espresso Machine
Availability: InStock

ZL22 black

Semi-Automatic Espresso Machine

ZL22 Professional Single-Group Espresso Machine Built for commercial beverage service, ZL22 combines a heated E61 brew group, dual boilers, an Italian FOT rotary pump and programmable temperature control in a compact stainless-steel body. This black version is designed for coffee shops, hotels, restaurants and other professional applications requiring dependable espresso, steam and hot-water performance. E61 Brewing with Independent Temperature Control The pure-copper E61 brew group includes a dedicated heating module to help maintain stable temperature at the group head. Brew temperature can be adjusted from 88 C to 95 C, allowing the operator to match different roast profiles and extraction requirements. Pure-copper E61 brew group Independent brew-group heating module Adjustable 88 95 C brewing temperature Adjustable 1 9 second pre-infusion Programmable brew-water flow Pressure gauge for extraction reference Dual-Boiler Commercial Performance A 3.5 L steam boiler and a separate 0.8 L brew boiler support brewing, steaming and hot-water service with independent temperature management. The T3 control architecture uses multiple temperature sensors to monitor the steam boiler, brew boiler and heated group. 3.5 L steam boilerProvides steam and hot-water capacity for commercial beverage preparation. 0.8 L brew boilerDedicated to espresso extraction and brew-temperature stability. T3 temperature systemCoordinates the boiler and group-heating systems for controlled operation. Italian FOT Rotary Pump and Copper Water Circuit The commercial rotary-pump system provides approximately 9-bar brewing pressure for espresso extraction. Pure-copper internal piping, an imported flow meter and commercial-grade valves provide a durable water circuit designed for repeat beverage preparation. Italian FOT PA204 rotary pump Imported flow meter Pure-copper internal piping OPV pressure-management system Adjustable brew-water flow Designed for repeated commercial cup production Professional Steam and Hot-Water Service The adjustable steam system supports milk heating and microfoam preparation, while the separate hot-water outlet serves Americanos, tea and equipment preheating. Anti-scald steam and hot-water components improve handling during daily operation. Adjustable steam-boiler temperature Independent steam and hot-water controls Anti-scald steam wand and hot-water outlet Large stainless-steel working area and removable drip tray Top cup-warming rack Commercial Installation ZL22 uses an external water inlet. Purified water from a filtration system or bottled water is recommended to reduce scale accumulation and protect the heating circuit. Installation, electrical connection and water-line setup should be completed by qualified personnel according to local requirements. Installation notice: The 220 240 V machine requires a properly grounded commercial electrical circuit. Confirm the applicable rated power, plug type, breaker capacity and regional configuration before ordering or installation. Technical Specifications Model ZL22 Configuration Single-group semi-automatic commercial espresso machine Color Black Brew group Pure-copper E61 group with heating module Boiler configuration 3.5 L steam boiler + 0.8 L brew boiler Pump Italian FOT commercial rotary pump Extraction pressure Approximately 9 bar Brew temperature Adjustable from 88 C to 95 C Pre-infusion Adjustable from 1 to 9 seconds Rated power 3500 W; regional configuration should be confirmed Voltage and frequency 220 240 V, 50/60 Hz Water supply External purified-water or bottled-water connection Housing Stainless steel Machine dimensions 470 350 460 mm Carton dimensions 610 550 430 mm Net / gross weight 31.5 kg / 42 kg Accessories and B2B Supply The standard accessory configuration includes portafilter components, filter baskets, a tamper and a coffee distributor. Final accessories should be confirmed against the order packing list. ZL22 is suitable for coffee-equipment distributors, commercial kitchen suppliers, hospitality projects and branded coffee-machine programs. OEM/ODM requirements, branding, voltage configuration and packing details can be discussed for qualified orders. Commercial Espresso Machine Enquiries Contact Zilong to confirm electrical configuration, water connection, accessories, branding options and order requirements.

ZL24 black

Semi-Automatic Espresso Machine

ZILONG COMMERCIAL ESPRESSO EQUIPMENT ZL24 Semi-Automatic Espresso Machine A compact commercial single-group espresso machine combining independent steam and extraction boilers, a professional rotary pump and programmable electronic controls for consistent daily coffee service. Built for Professional Coffee Service The ZL24 is designed for commercial locations that require stable espresso extraction, strong steam performance and straightforward operation. Its independent 3.5 L steam boiler and 0.8 L extraction boiler allow brewing and milk preparation to be managed efficiently during busy service periods. Commercial Rotary PumpProvides stable water delivery for professional espresso preparation and direct-plumbed operation. Dual-Boiler ConfigurationSeparate 3.5 L steam and 0.8 L extraction boilers support brewing and steaming workflows. Programmable DosingSingle-cup, double-cup and manual extraction modes help standardize beverage preparation. Adjustable Brewing ParametersSupports adjustable brewing temperature, steam temperature, pre-infusion and extraction volume. Key Operating Features 9-bar professional espresso extraction Commercial rotary pump with external water connection PID and NTC electronic temperature management Adjustable brewing-head temperature from 88 C to 95 C Adjustable pre-infusion time from 1 to 9 seconds Programmable single and double extraction volumes Integrated flow meter for controlled water delivery Steam-pressure gauge for easier monitoring Anti-scald steam wand and hot-water outlet Stainless-steel housing, cup-warming rack and removable collection tray Technical Specifications Model ZL24 Product Type Commercial single-group semi-automatic espresso machine Extraction Pressure 9 bar Pump Commercial rotary pump Water Supply External direct water connection Boiler Configuration 3.5 L steam boiler + 0.8 L extraction boiler Temperature Control PID + NTC electronic control Rated Power 3500 W Voltage 220-240 V, 50/60 Hz Machine Size 470 350 460 mm Carton Size 610 550 430 mm Net / Gross Weight 31.5 kg / 42 kg Housing Material Stainless steel Standard Color Black; other finishes available by inquiry Standard Accessories The supplied accessory set includes a bottomless portafilter, double-spout portafilter, coffee tamper, distributor and filter basket. Final accessory configuration can be confirmed before ordering. Commercial Applications Suitable for coffee shops, restaurants, hotels, offices, mobile coffee services and professional home coffee bars. Contact ZILONG for configuration options, customized finishes, OEM/ODM requirements, packaging and bulk-order information.

ZL23 black

Semi-Automatic Espresso Machine

ZILONG Professional Coffee Equipment ZL23 Semi-Automatic Espresso Machine A commercial single-group machine with independent dual boilers, an Italian FOT rotary pump and programmable extraction controls for consistent espresso and dependable milk-steaming performance. Professional Performance in a Compact Format The ZL23 is built for caf s, restaurants, hotels and professional beverage counters. Its 3.5 L steam boiler and 0.8 L extraction boiler operate independently, allowing the barista to brew espresso and steam milk efficiently during daily service. The digital control panel displays extraction information and supports programmable single-cup, double-cup and manual modes. Independent Dual BoilersA 3.5 L steam boiler and 0.8 L extraction boiler support simultaneous brewing and steaming. Italian Rotary PumpFOT PA204 rotary pump for stable water delivery in a commercial installation. Programmable ExtractionAdjust temperature, pre-infusion and beverage volume for repeatable daily operation. Key Specifications Model ZL23 Machine type Semi-automatic, single-group espresso machine Boiler system 3.5 L steam boiler + 0.8 L extraction boiler Total rated power 3900 W Heating and motor power Steam boiler 2500 W; extraction boiler 1000 W; brew head 250 W; motor 150 W Pump Italian FOT PA204 rotary pump Motor XM E1214 motor Flow meter Italian GICAR flow meter (high configuration) Brew-head temperature Adjustable from 88-95 C Pre-infusion time Adjustable from 1-9 seconds Extraction modes Programmable single cup, double cup and manual extraction Water supply External purified or bottled water connection Barista-Focused Features Digital display for extraction pressure, time and temperature Adjustable extraction volume and pre-infusion settings Anti-scald steam wand and hot-water faucet Integrated cup-warming rack Commercial two-way and three-way valve system Included accessoriesDual-cup portafilter, dosing device, coffee tamper and filter basket. Product Details Explore the machine, control system, accessories and commercial presentation in the product images below.

ZL11B

Semi-automatic espresso machine

ZL11B Semi-automatic espresso machine Built for professional coffee service, the ZL11B configuration combines independent brew and steam capacity with precise digital control. Its dual-boiler system, commercial rotary pump and stainless-steel construction support stable espresso extraction and dependable daily operation. Independent Dual Boilers6 L steam boiler plus 1 L brewing boiler for simultaneous brewing and steaming. Commercial 9 Bar Rotary PumpItalian Fluid-O-Tech rotary pump engineered for stable extraction pressure. T3 Digital ControlPID temperature management with programmable dosing and pre-infusion settings. Key Specifications Model ZL11B Product type Dual-boiler single-group espresso machine Boilers 6 L steam boiler + 1 L brewing boiler Pump 9 bar Italian Fluid-O-Tech rotary pump Control system T3 control with PID, NTC and OPV Brew settings 88-95°C temperature range; 1-9 s pre-infusion Power 3900 W Voltage 110-240 V, 50/60 Hz Water supply External water or bottled/purified water Material Stainless steel and metal body Machine size 570 × 680 × 480 mm Net / gross weight 56 kg / 80 kg Carton size 730 × 650 × 630 mm Available colors Black, white, red or customized Professional Brewing and Steam Performance Independent dual-boiler architecture supports brewing and steaming at the same time. PID-controlled brew temperature and adjustable pre-infusion help refine extraction for different coffee recipes. Digital controls provide programmable single- and double-cup dosing, temperature display and pressure monitoring. Four-hole anti-scald steam wand supports milk texturing, while the separate hot-water outlet serves tea and Americanos. Copper piping, VDE valves, GICAR flowmeter and drainage connection support a professional installation. Approximate 3-minute warm-up time helps prepare the machine for service efficiently. Standard Accessories 58 mm portafilter, filter basket, tamper, cleaning brush, cleaning pad, water inlet and drain pipes, and operation manual. Flexible for commercial projects Choose black, white, red or a customized finish to suit café, restaurant, hotel and branded coffee-service environments. Final configuration, voltage and color are subject to order confirmation. Detailed Product Views

Commercial Rotary Pump Provides stable water delivery for professional espresso preparation and direct-plumbed operation.	Dual-Boiler Configuration Separate 3.5 L steam and 0.8 L extraction boilers support brewing and steaming workflows.
Programmable Dosing Single-cup, double-cup and manual extraction modes help standardize beverage preparation.	Adjustable Brewing Parameters Supports adjustable brewing temperature, steam temperature, pre-infusion and extraction volume.

Model	ZL24
Product Type	Commercial single-group semi-automatic espresso machine
Extraction Pressure	9 bar
Pump	Commercial rotary pump
Water Supply	External direct water connection
Boiler Configuration	3.5 L steam boiler + 0.8 L extraction boiler
Temperature Control	PID + NTC electronic control
Rated Power	3500 W
Voltage	220-240 V, 50/60 Hz
Machine Size	470 × 350 × 460 mm
Carton Size	610 × 550 × 430 mm
Net / Gross Weight	31.5 kg / 42 kg
Housing Material	Stainless steel
Standard Color	Black; other finishes available by inquiry

ZL24 Semi-Automatic Espresso Machine

Built for Professional Coffee Service

Key Operating Features

Technical Specifications

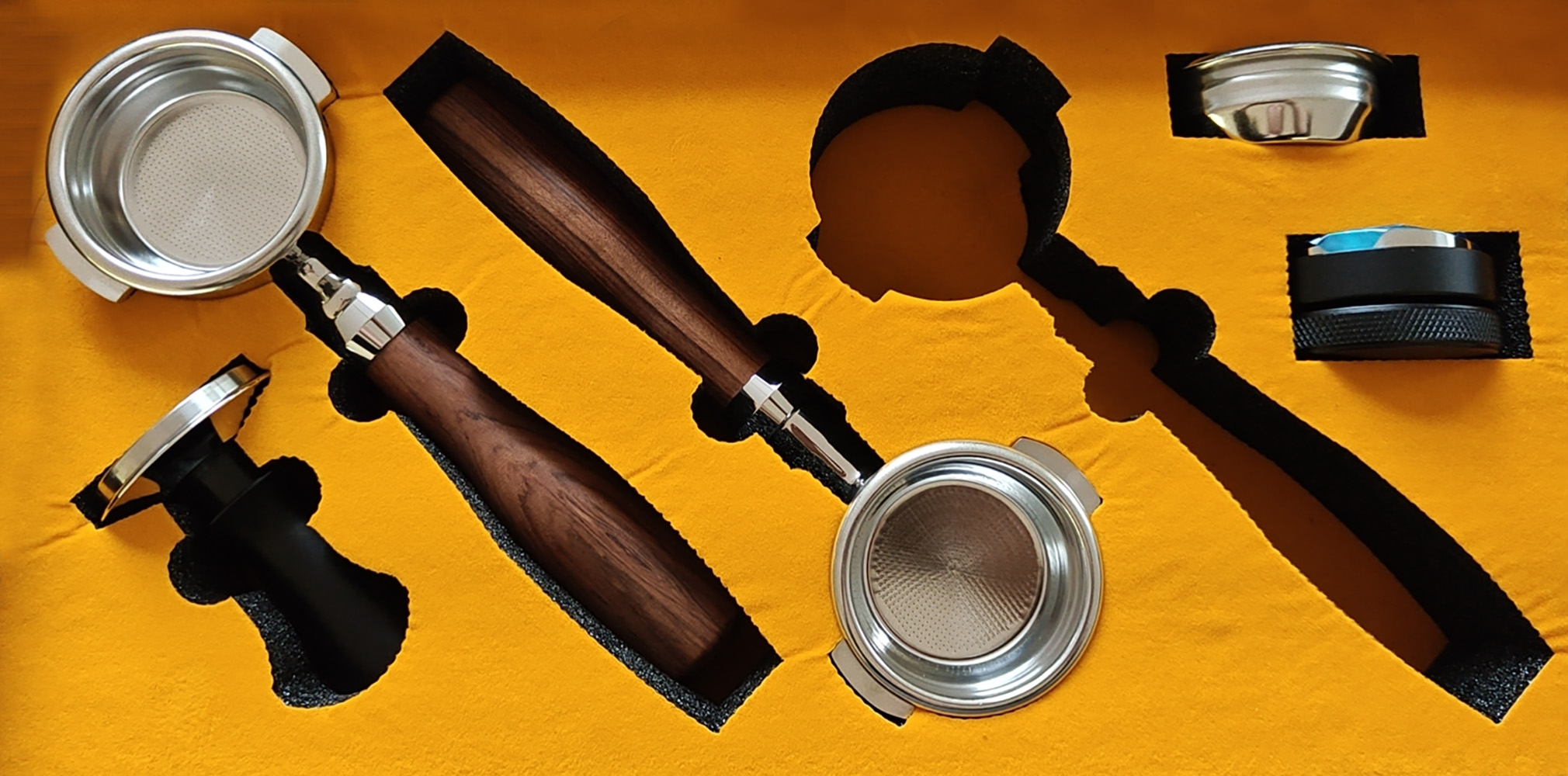

Standard Accessories

Commercial Applications
