ZL11B

Semi-automatic espresso machine

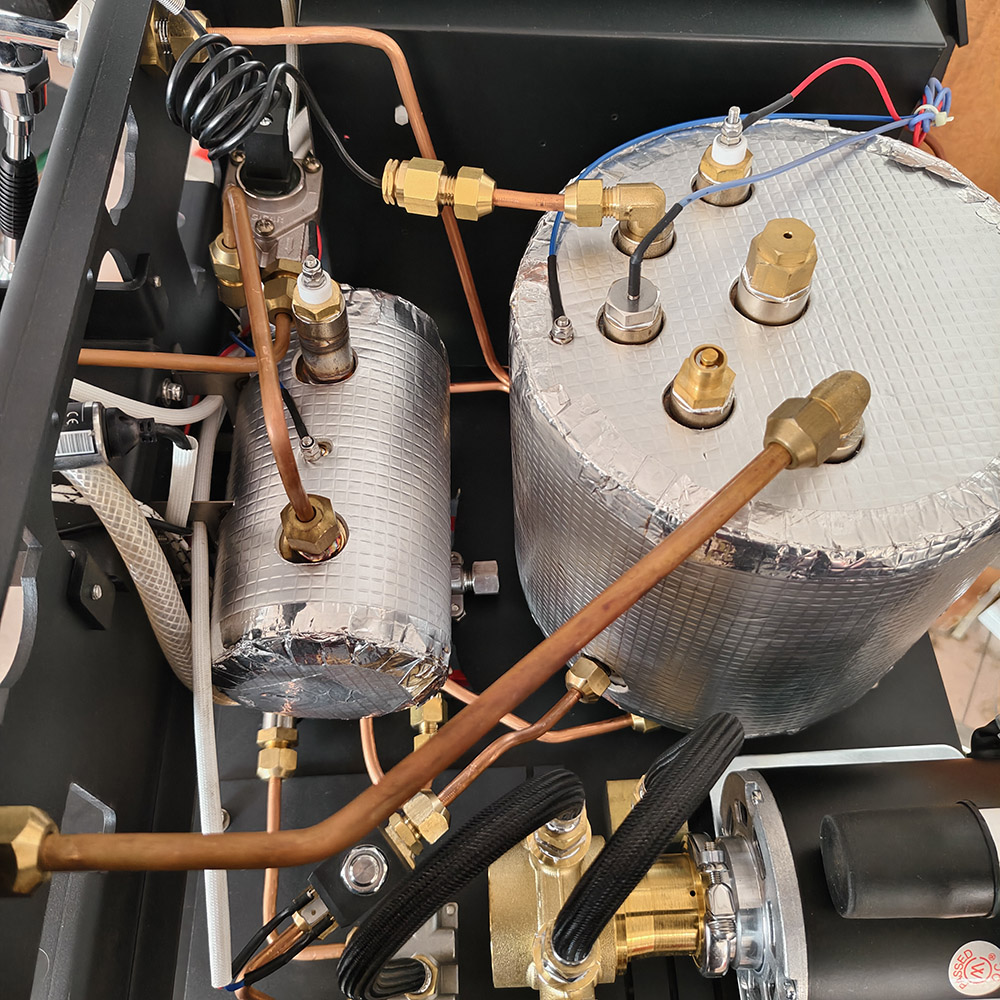

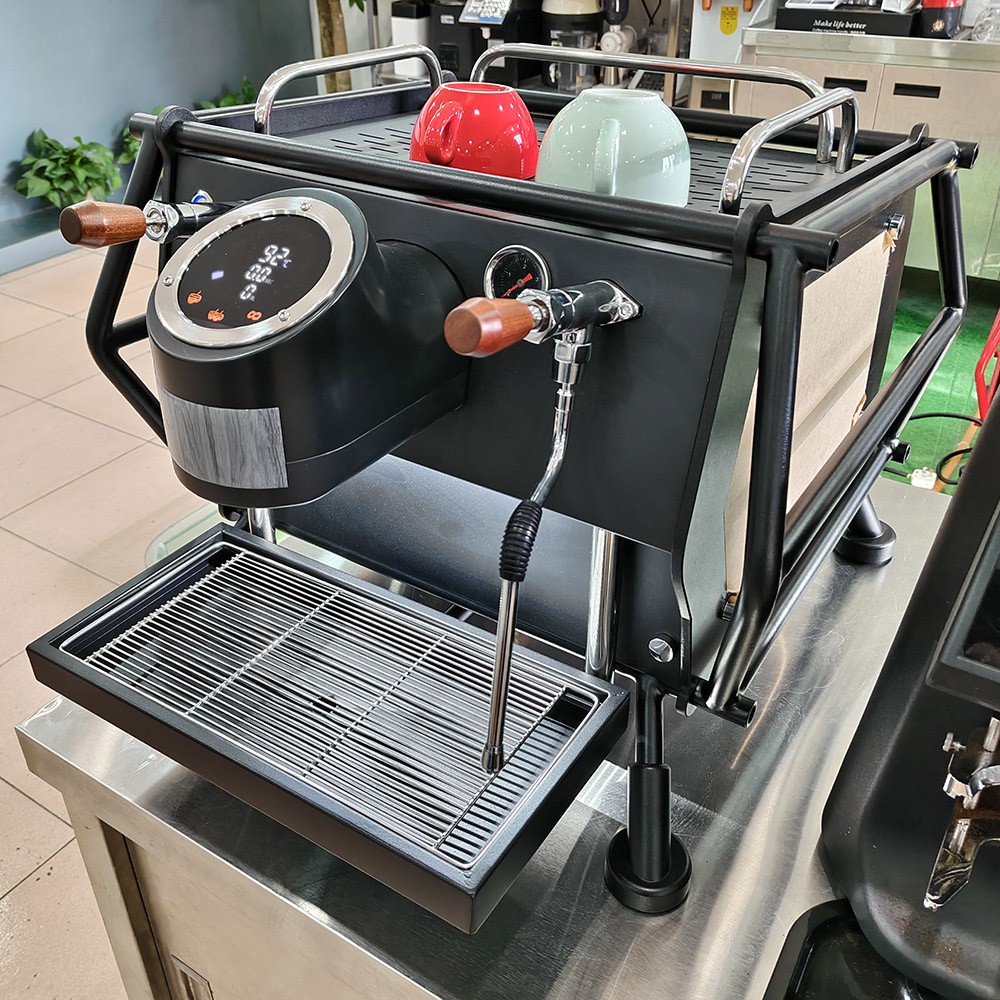

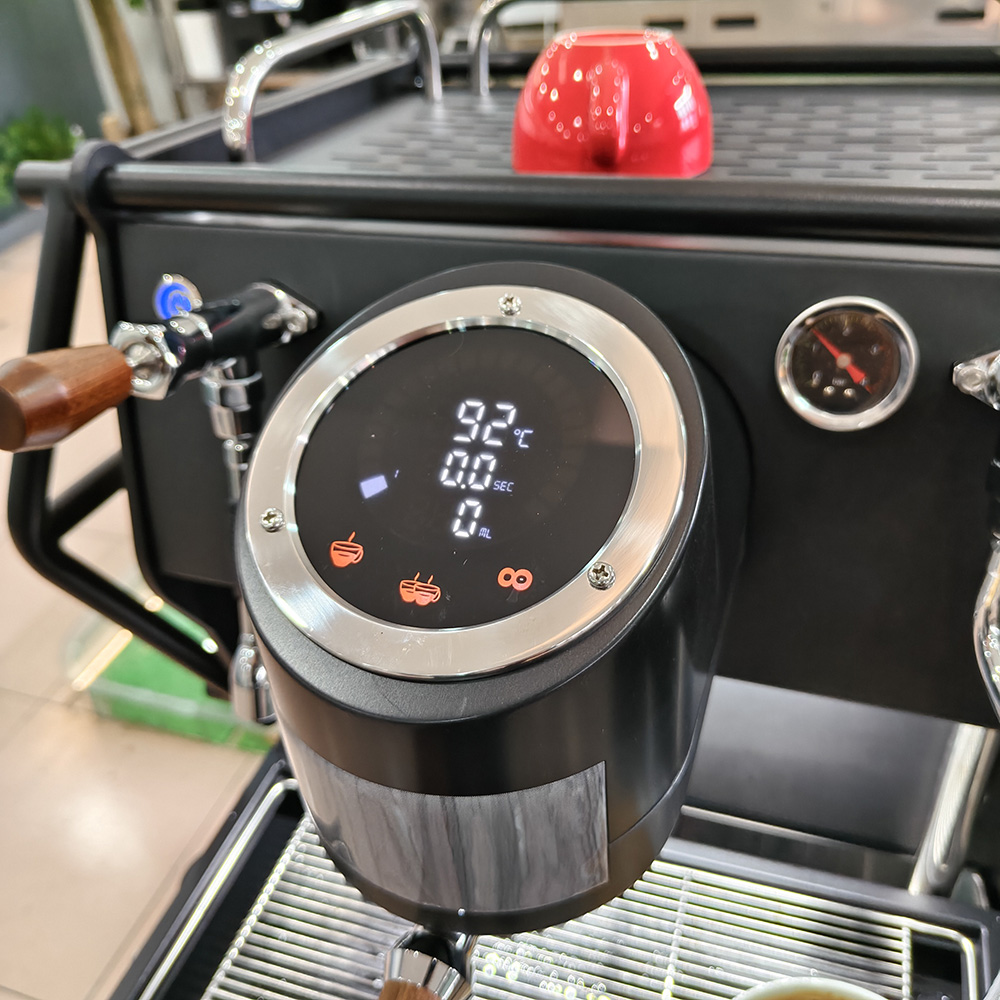

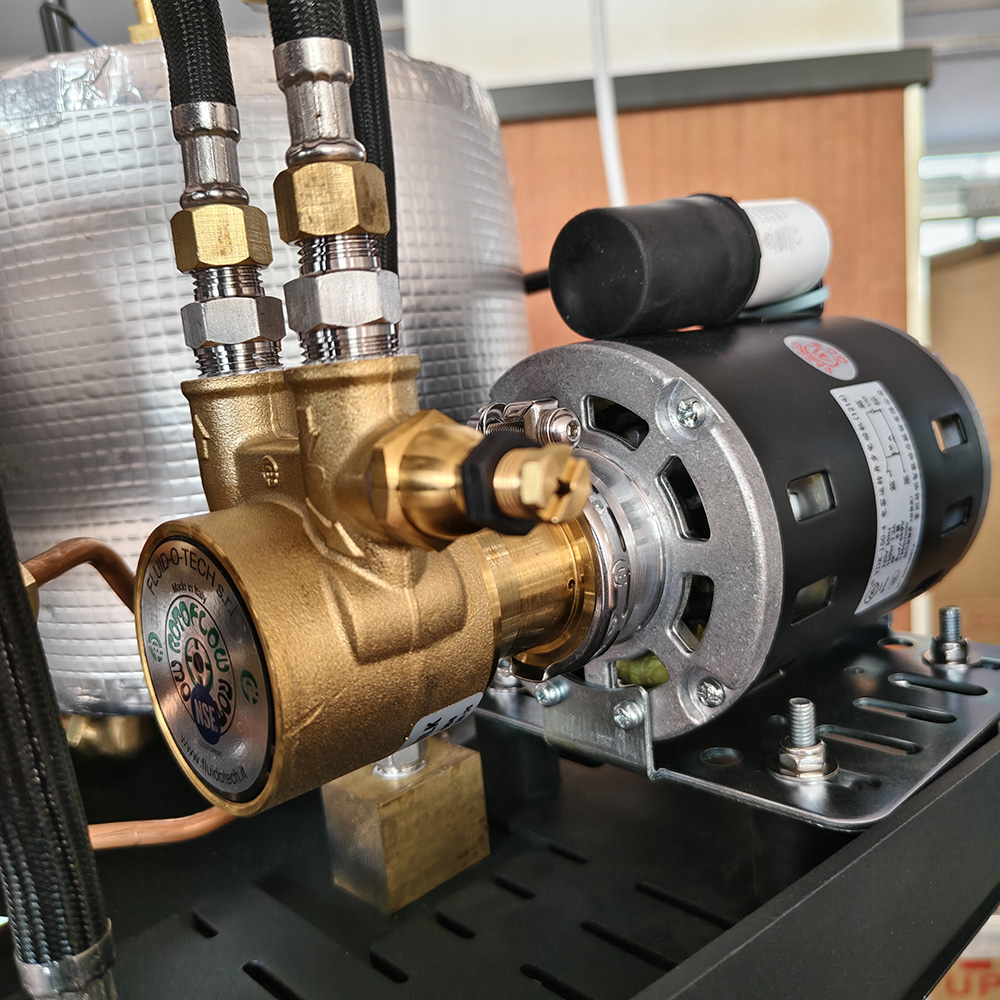

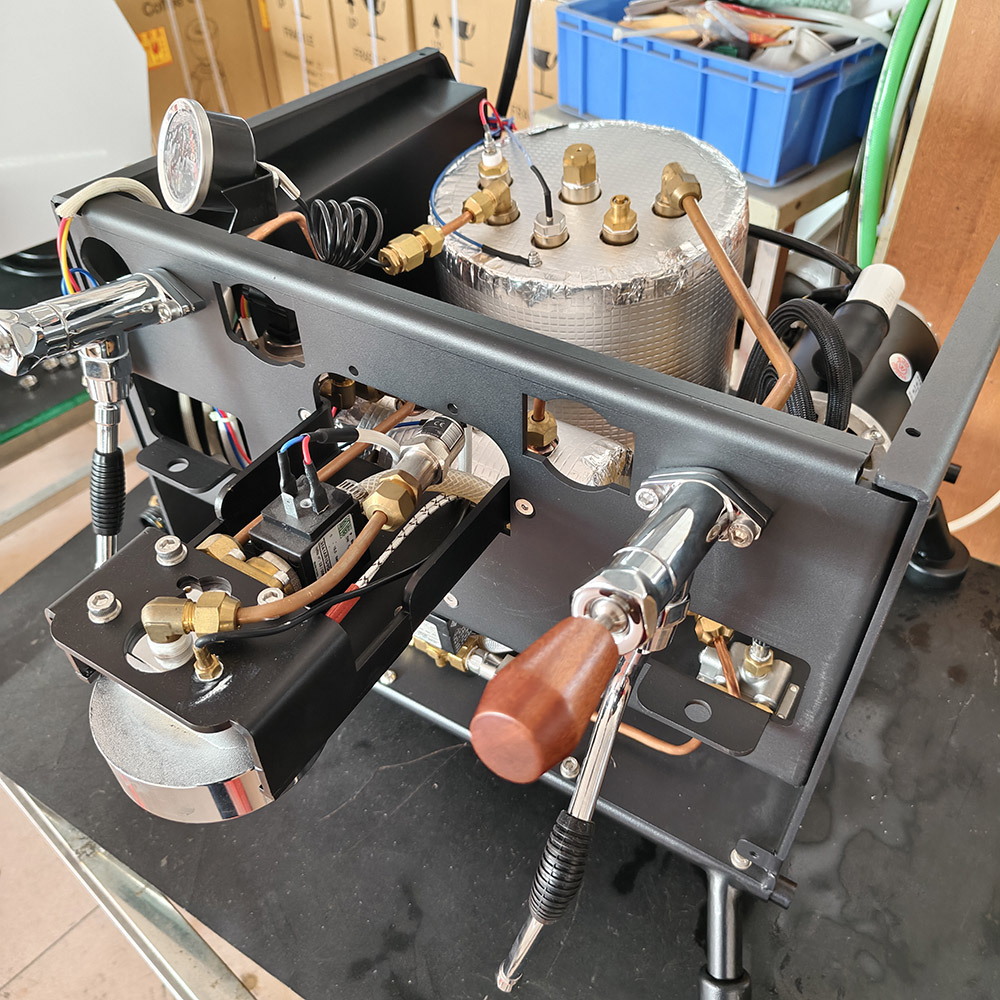

ZL11B Semi-automatic espresso machine Built for professional coffee service, the ZL11B configuration combines independent brew and steam capacity with precise digital control. Its dual-boiler system, commercial rotary pump and stainless-steel construction support stable espresso extraction and dependable daily operation. Independent Dual Boilers6 L steam boiler plus 1 L brewing boiler for simultaneous brewing and steaming. Commercial 9 Bar Rotary PumpItalian Fluid-O-Tech rotary pump engineered for stable extraction pressure. T3 Digital ControlPID temperature management with programmable dosing and pre-infusion settings. Key Specifications Model ZL11B Product type Dual-boiler single-group espresso machine Boilers 6 L steam boiler + 1 L brewing boiler Pump 9 bar Italian Fluid-O-Tech rotary pump Control system T3 control with PID, NTC and OPV Brew settings 88-95°C temperature range; 1-9 s pre-infusion Power 3900 W Voltage 110-240 V, 50/60 Hz Water supply External water or bottled/purified water Material Stainless steel and metal body Machine size 570 × 680 × 480 mm Net / gross weight 56 kg / 80 kg Carton size 730 × 650 × 630 mm Available colors Black, white, red or customized Professional Brewing and Steam Performance Independent dual-boiler architecture supports brewing and steaming at the same time. PID-controlled brew temperature and adjustable pre-infusion help refine extraction for different coffee recipes. Digital controls provide programmable single- and double-cup dosing, temperature display and pressure monitoring. Four-hole anti-scald steam wand supports milk texturing, while the separate hot-water outlet serves tea and Americanos. Copper piping, VDE valves, GICAR flowmeter and drainage connection support a professional installation. Approximate 3-minute warm-up time helps prepare the machine for service efficiently. Standard Accessories 58 mm portafilter, filter basket, tamper, cleaning brush, cleaning pad, water inlet and drain pipes, and operation manual. Flexible for commercial projects Choose black, white, red or a customized finish to suit café, restaurant, hotel and branded coffee-service environments. Final configuration, voltage and color are subject to order confirmation. Detailed Product Views

Model	ZL11B	Product type	Dual-boiler single-group espresso machine
Boilers	6 L steam boiler + 1 L brewing boiler	Pump	9 bar Italian Fluid-O-Tech rotary pump
Control system	T3 control with PID, NTC and OPV	Brew settings	88-95°C temperature range; 1-9 s pre-infusion
Power	3900 W	Voltage	110-240 V, 50/60 Hz
Water supply	External water or bottled/purified water	Material	Stainless steel and metal body
Machine size	570 × 680 × 480 mm	Net / gross weight	56 kg / 80 kg
Carton size	730 × 650 × 630 mm	Available colors	Black, white, red or customized

ZL11B Semi-automatic espresso machine

Key Specifications

Professional Brewing and Steam Performance

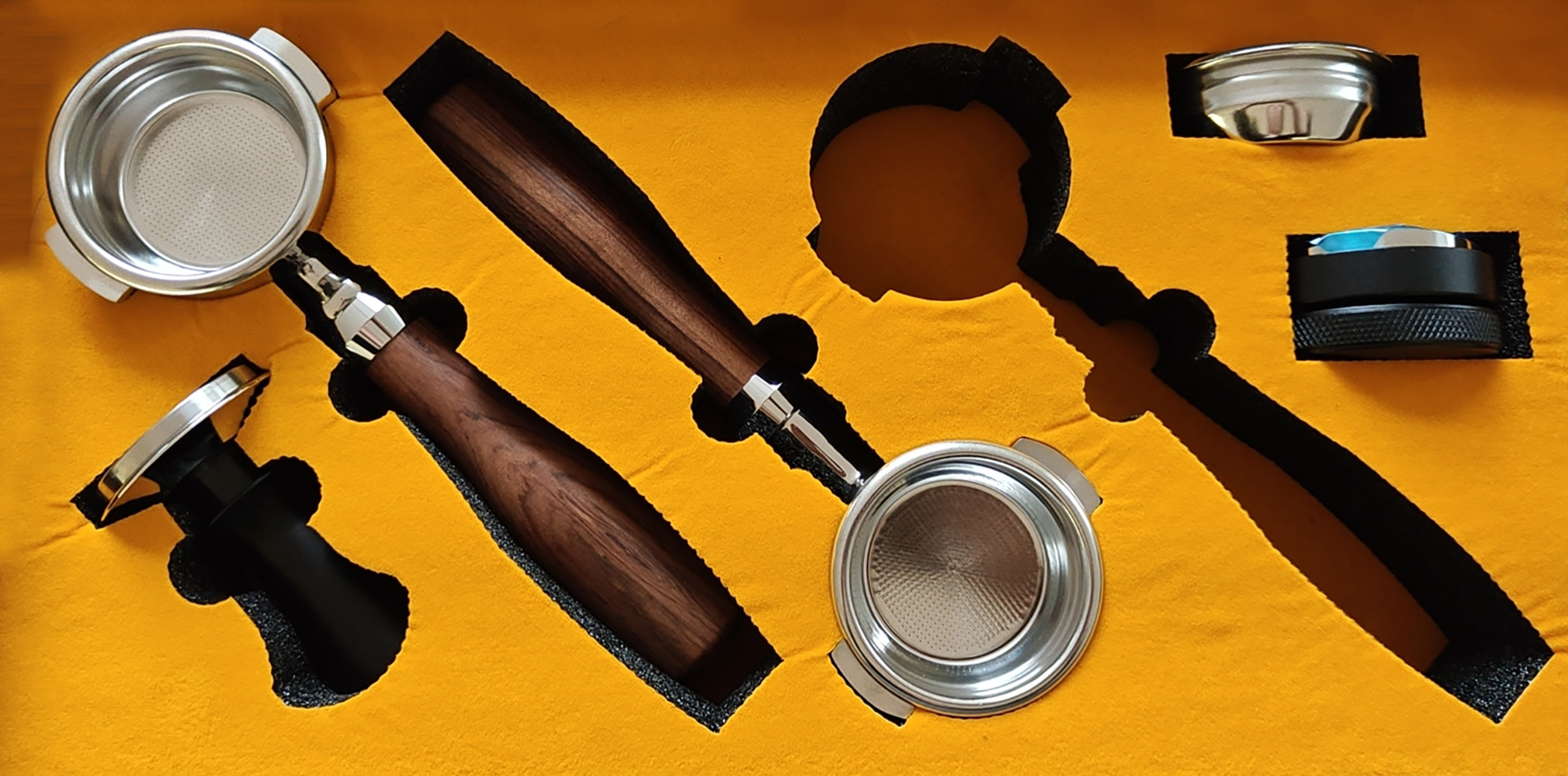

Standard Accessories

Detailed Product Views
