Name: Semi-Automatic Espresso Machine
Availability: InStock

‌
‌
‌
‌
‌

Description

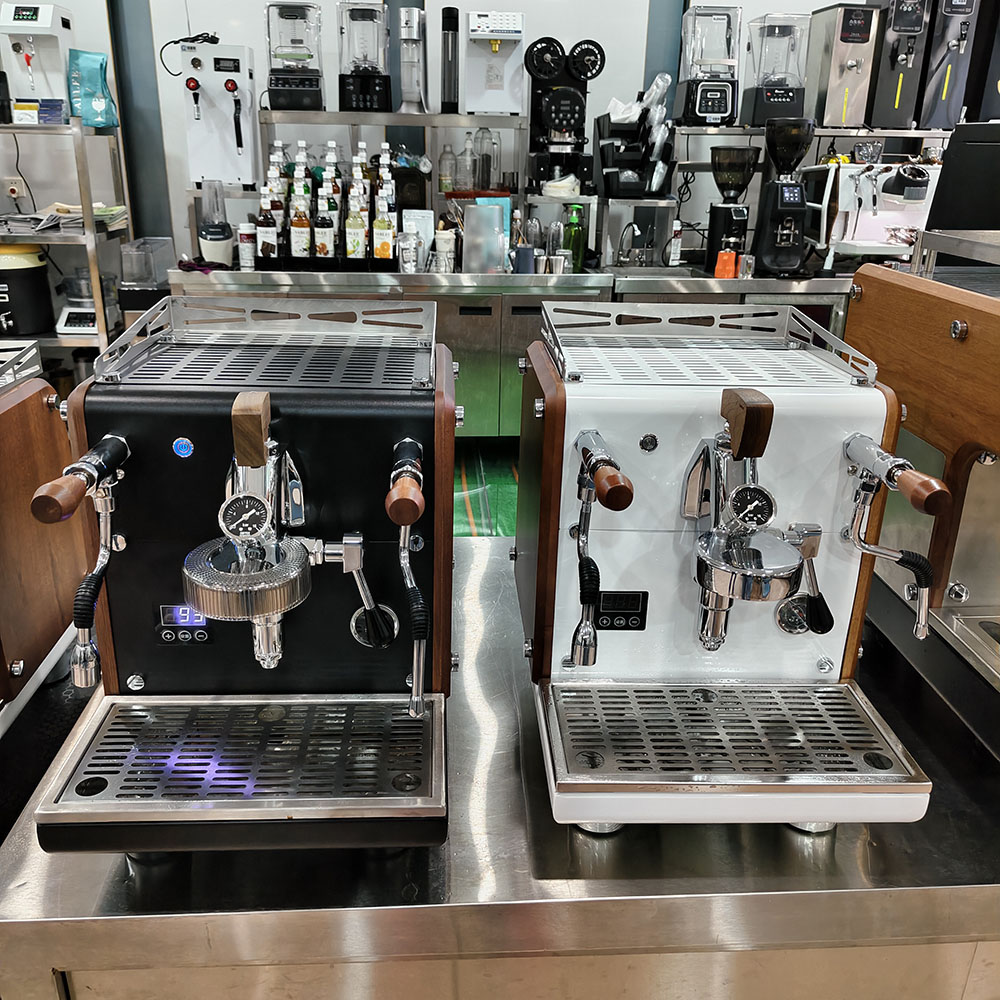

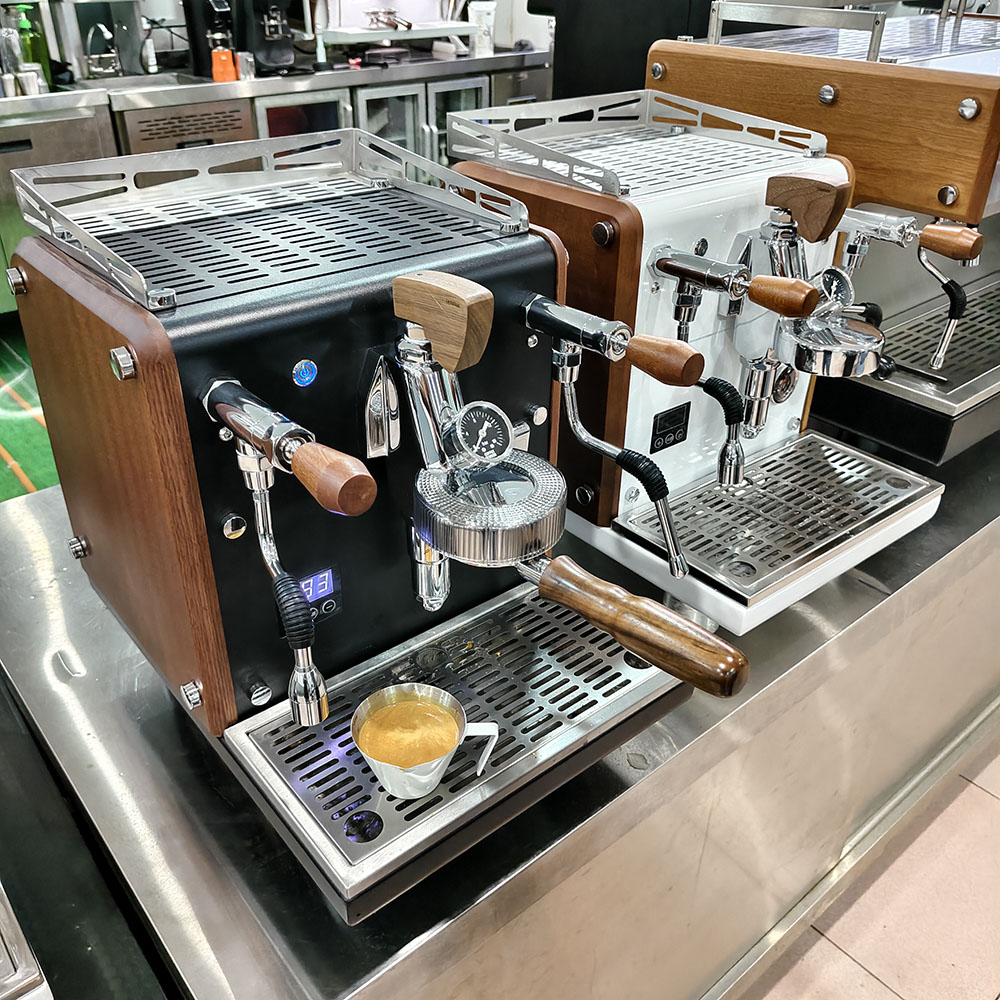

ZL22 Professional Single-Group Espresso Machine

Built for commercial beverage service, ZL22 combines a heated E61 brew group, dual boilers, an Italian FOT rotary pump and programmable temperature control in a compact stainless-steel body. This black version is designed for coffee shops, hotels, restaurants and other professional applications requiring dependable espresso, steam and hot-water performance.

ZL22 black commercial E61 espresso machine - detail 01

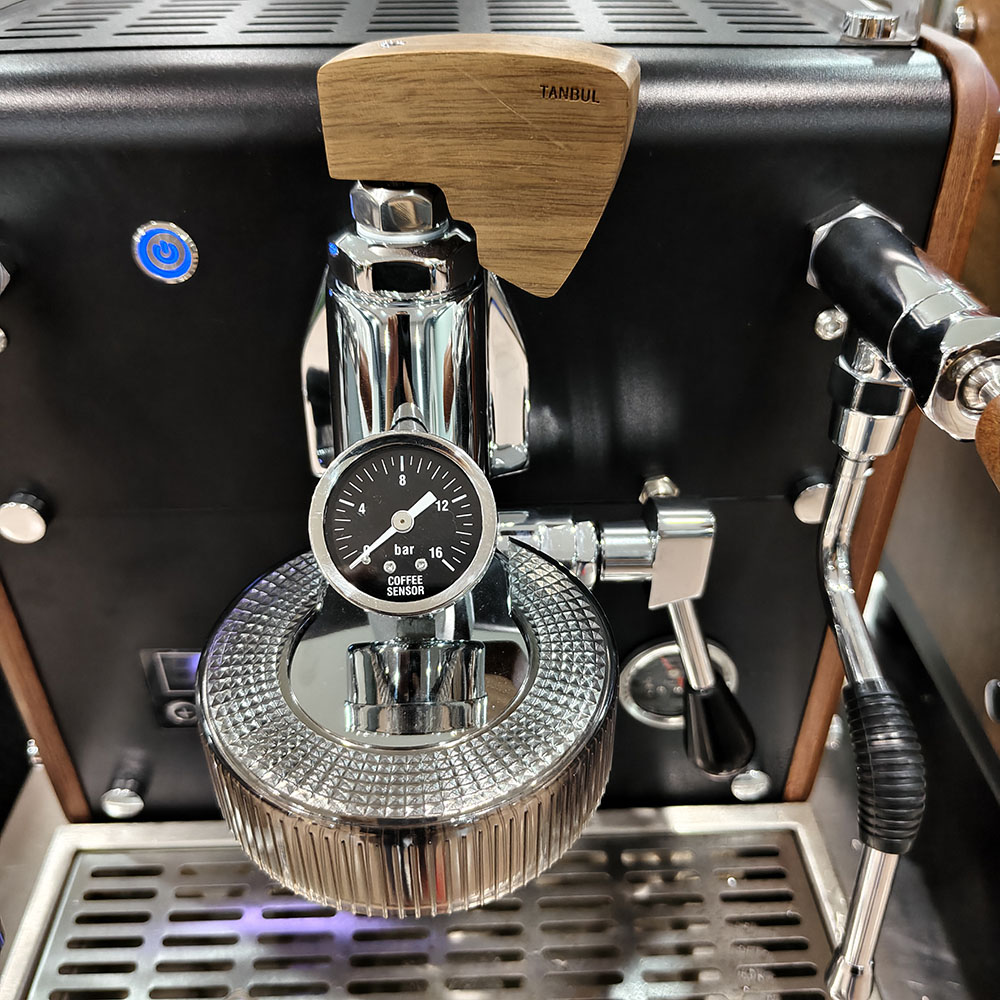

E61 Brewing with Independent Temperature Control

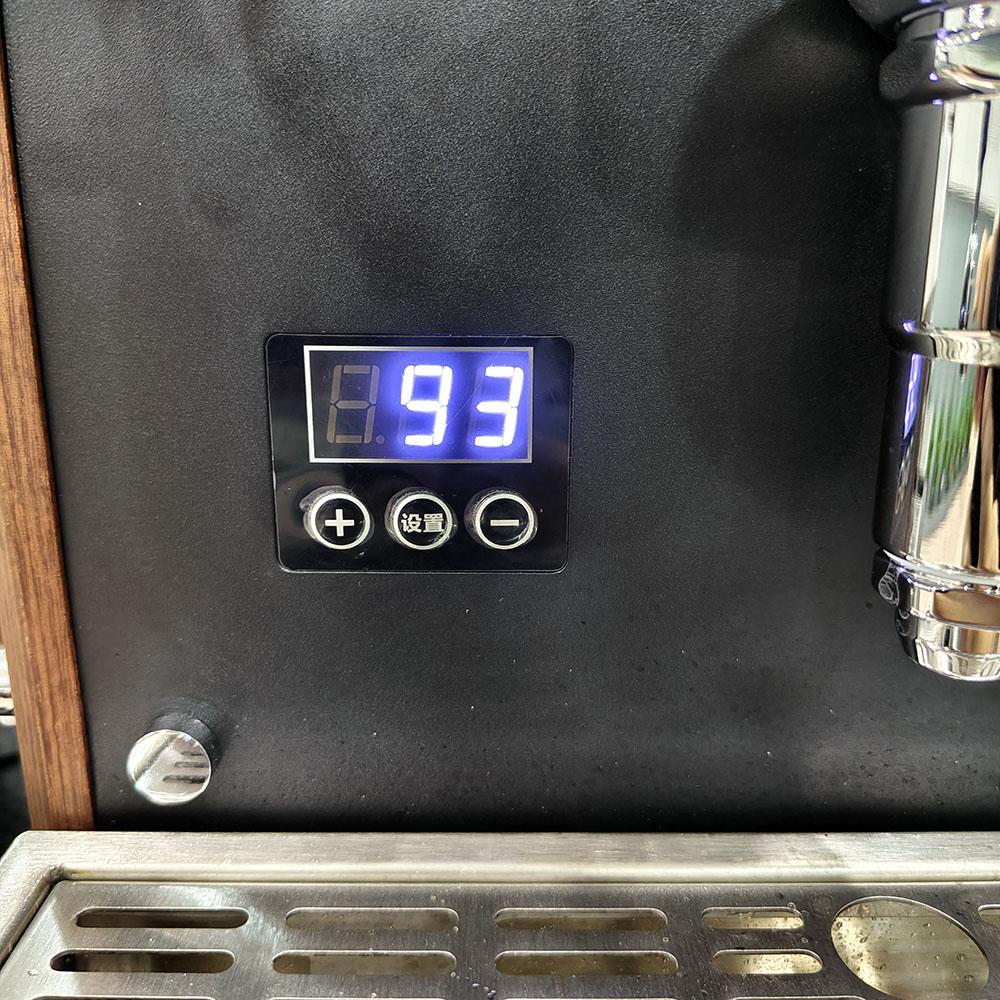

The pure-copper E61 brew group includes a dedicated heating module to help maintain stable temperature at the group head. Brew temperature can be adjusted from 88°C to 95°C, allowing the operator to match different roast profiles and extraction requirements.

Pure-copper E61 brew group
Independent brew-group heating module
Adjustable 88–95°C brewing temperature
Adjustable 1–9 second pre-infusion
Programmable brew-water flow
Pressure gauge for extraction reference

ZL22 black commercial E61 espresso machine - detail 02

ZL22 black commercial E61 espresso machine - detail 03

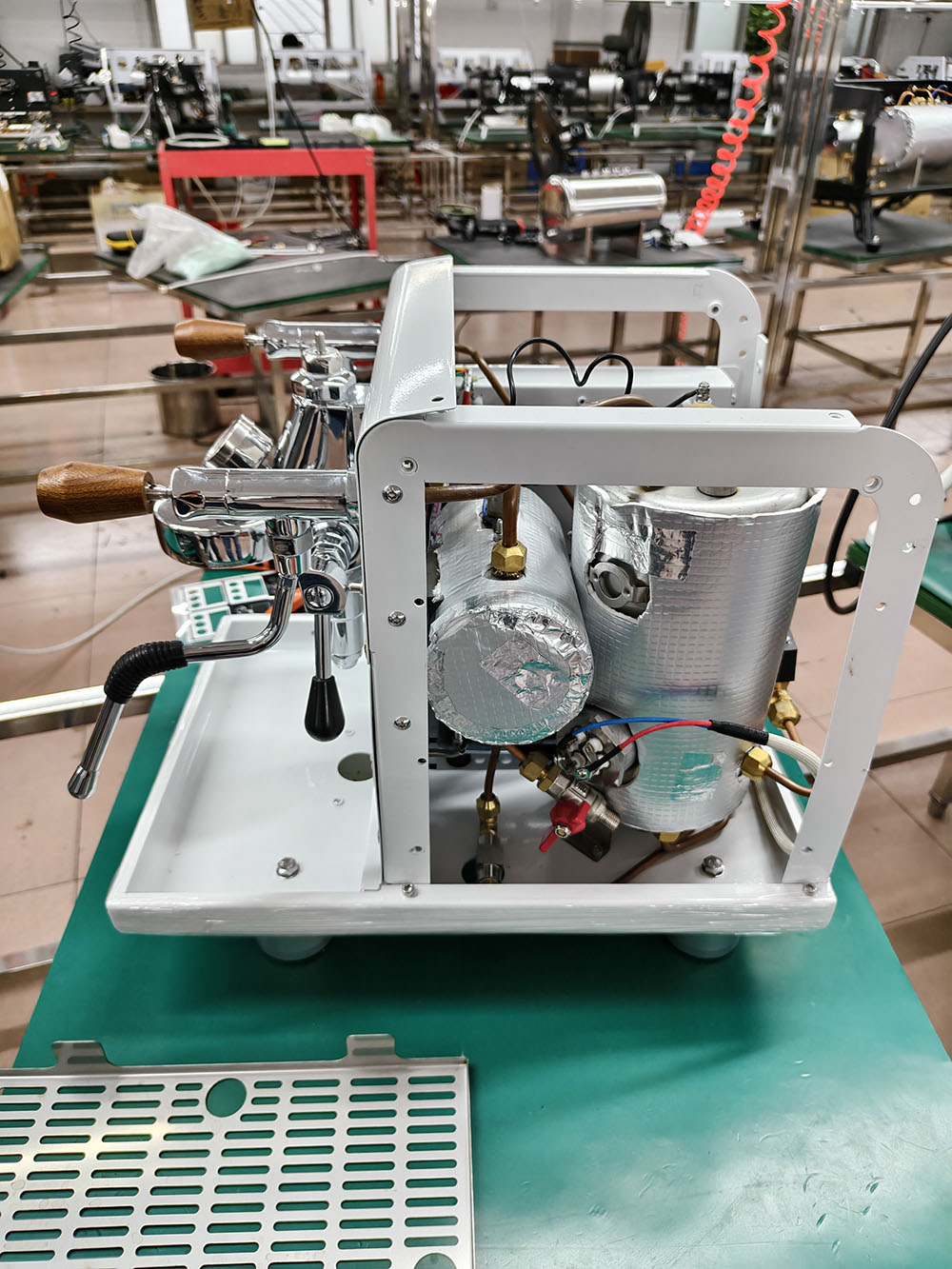

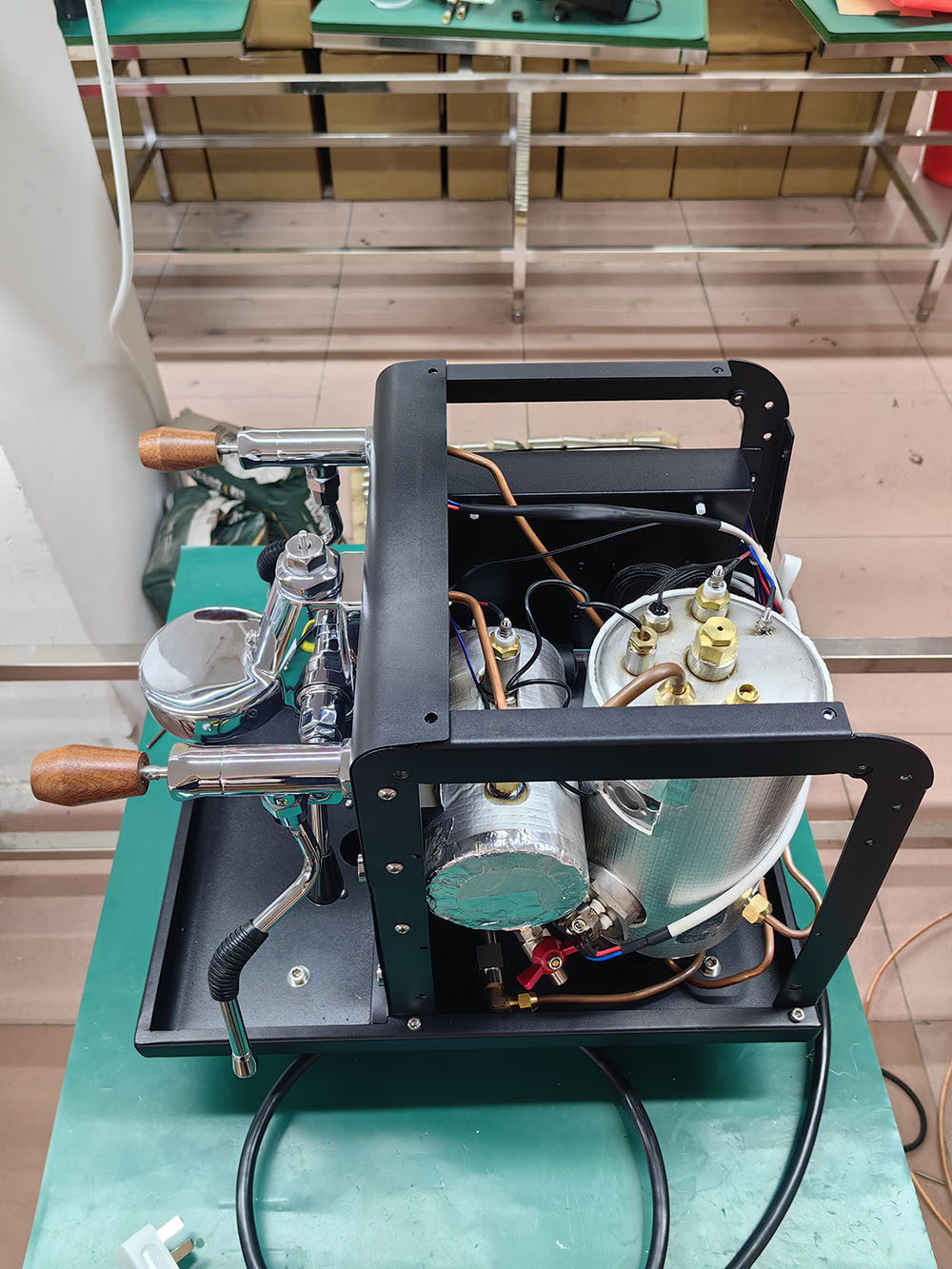

Dual-Boiler Commercial Performance

A 3.5 L steam boiler and a separate 0.8 L brew boiler support brewing, steaming and hot-water service with independent temperature management. The T3 control architecture uses multiple temperature sensors to monitor the steam boiler, brew boiler and heated group.

3.5 L steam boiler
Provides steam and hot-water capacity for commercial beverage preparation.

0.8 L brew boiler
Dedicated to espresso extraction and brew-temperature stability.

T3 temperature system
Coordinates the boiler and group-heating systems for controlled operation.

ZL22 black commercial E61 espresso machine - detail 04

ZL22 black commercial E61 espresso machine - detail 05

Italian FOT Rotary Pump and Copper Water Circuit

The commercial rotary-pump system provides approximately 9-bar brewing pressure for espresso extraction. Pure-copper internal piping, an imported flow meter and commercial-grade valves provide a durable water circuit designed for repeat beverage preparation.

Italian FOT PA204 rotary pump
Imported flow meter
Pure-copper internal piping
OPV pressure-management system
Adjustable brew-water flow
Designed for repeated commercial cup production

ZL22 black commercial E61 espresso machine - detail 06

ZL22 black commercial E61 espresso machine - detail 07

Professional Steam and Hot-Water Service

The adjustable steam system supports milk heating and microfoam preparation, while the separate hot-water outlet serves Americanos, tea and equipment preheating. Anti-scald steam and hot-water components improve handling during daily operation.

Adjustable steam-boiler temperature
Independent steam and hot-water controls
Anti-scald steam wand and hot-water outlet
Large stainless-steel working area and removable drip tray

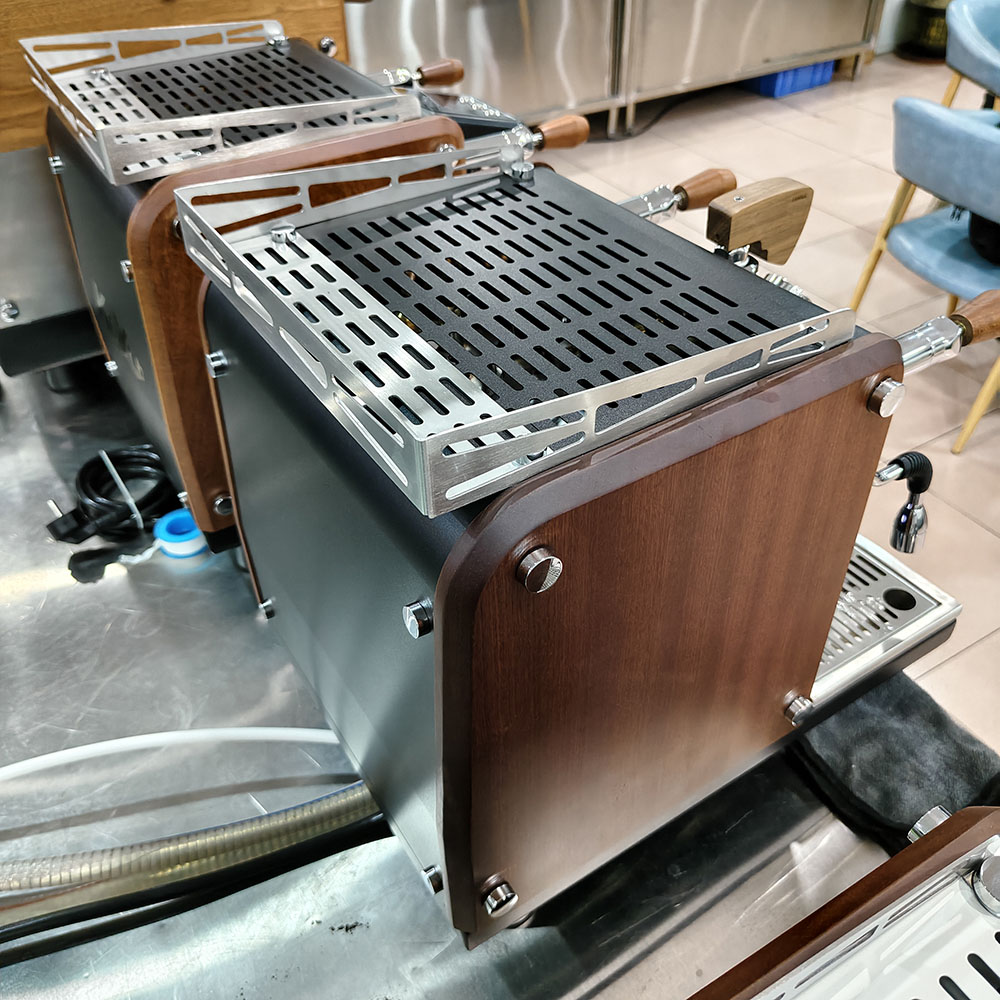

Top cup-warming rack

ZL22 black commercial E61 espresso machine - detail 08

ZL22 black commercial E61 espresso machine - detail 09

Commercial Installation

ZL22 uses an external water inlet. Purified water from a filtration system or bottled water is recommended to reduce scale accumulation and protect the heating circuit. Installation, electrical connection and water-line setup should be completed by qualified personnel according to local requirements.

Installation notice: The 220–240 V machine requires a properly grounded commercial electrical circuit. Confirm the applicable rated power, plug type, breaker capacity and regional configuration before ordering or installation.

ZL22 black commercial E61 espresso machine - detail 10

Technical Specifications

Model	ZL22
Configuration	Single-group semi-automatic commercial espresso machine
Color	Black
Brew group	Pure-copper E61 group with heating module
Boiler configuration	3.5 L steam boiler + 0.8 L brew boiler
Pump	Italian FOT commercial rotary pump
Extraction pressure	Approximately 9 bar
Brew temperature	Adjustable from 88°C to 95°C
Pre-infusion	Adjustable from 1 to 9 seconds
Rated power	3500 W; regional configuration should be confirmed
Voltage and frequency	220–240 V, 50/60 Hz
Water supply	External purified-water or bottled-water connection
Housing	Stainless steel
Machine dimensions	470 × 350 × 460 mm

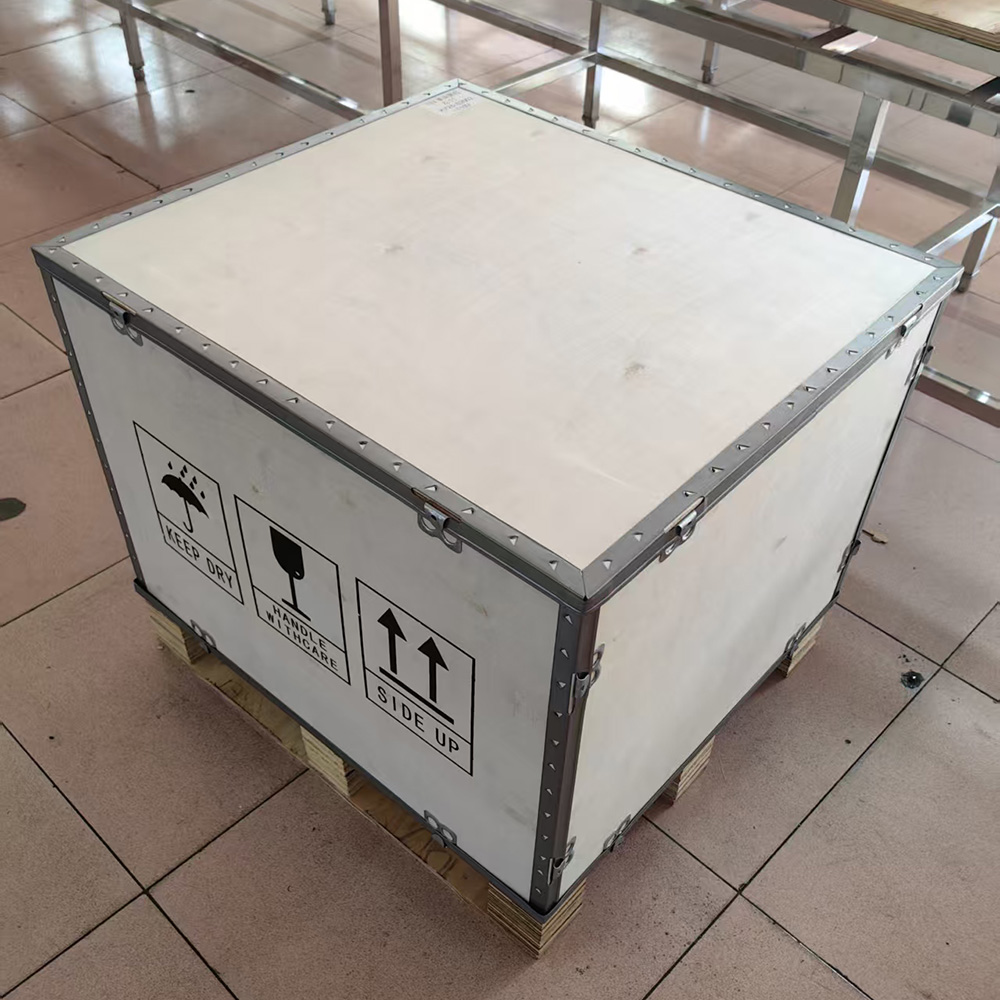

Carton dimensions	610 × 550 × 430 mm
Net / gross weight	31.5 kg / 42 kg

ZL22 black commercial E61 espresso machine - detail 11

ZL22 black commercial E61 espresso machine - detail 12

Accessories and B2B Supply

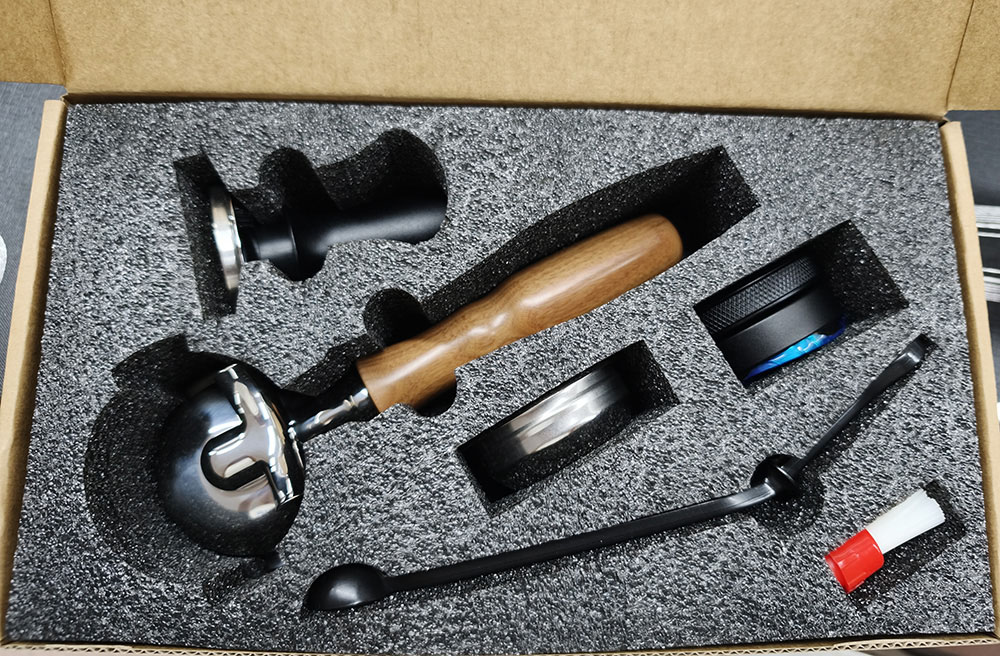

The standard accessory configuration includes portafilter components, filter baskets, a tamper and a coffee distributor. Final accessories should be confirmed against the order packing list.

ZL22 is suitable for coffee-equipment distributors, commercial kitchen suppliers, hospitality projects and branded coffee-machine programs. OEM/ODM requirements, branding, voltage configuration and packing details can be discussed for qualified orders.

Commercial Espresso Machine Enquiries

Contact Zilong to confirm electrical configuration, water connection, accessories, branding options and order requirements.
