ZILONG COMMERCIAL ESPRESSO EQUIPMENT

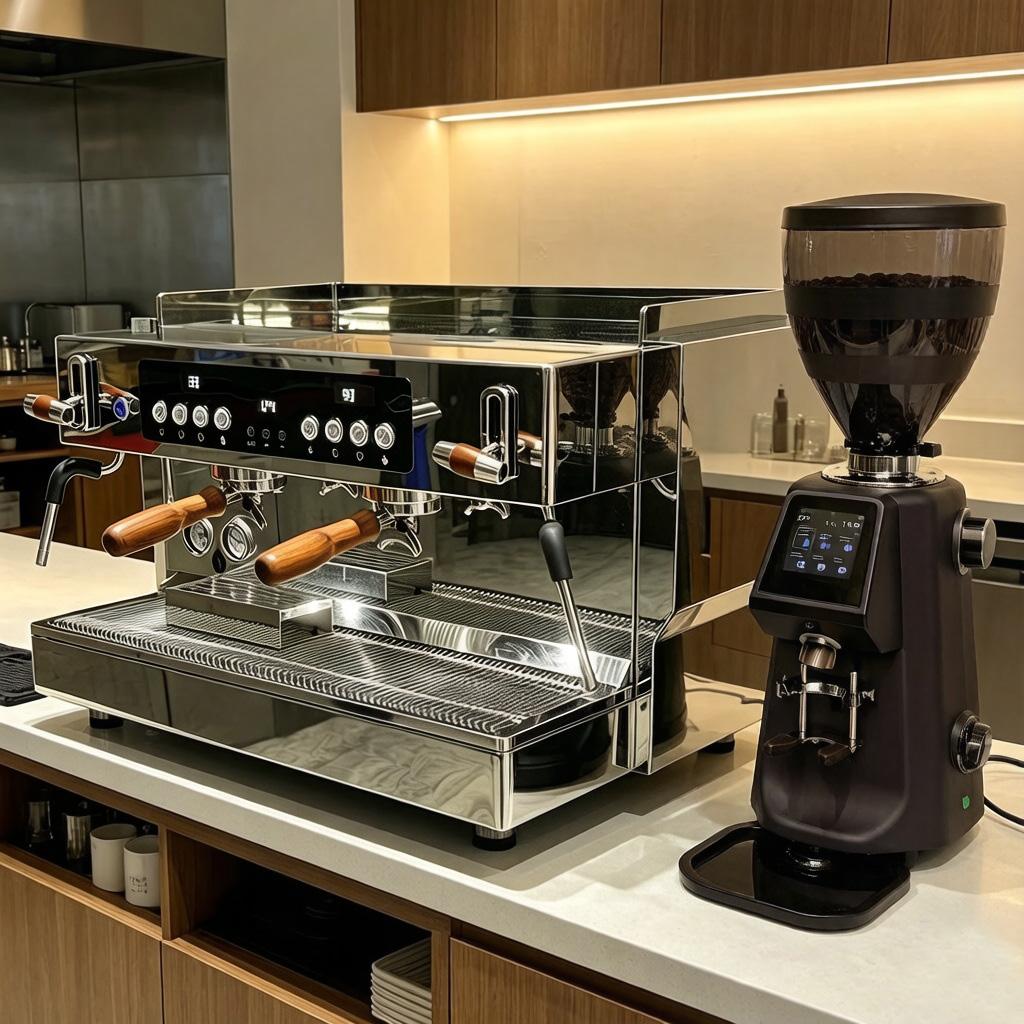

ZL08 Semi-Automatic Espresso Machine
A compact two-group commercial espresso machine combining three independent boilers, programmable extraction controls and a professional rotary pump with a distinctive stainless-steel and wood-finish exterior.
Compact Three-Boiler Performance
The ZL08 uses a 10 L steam boiler and two independent 0.8 L brew boilers. This configuration supports simultaneous espresso preparation, milk steaming and hot-water service while allowing each brewing group to be adjusted independently.
| Three Independent Boilers One 10 L steam boiler and two 0.8 L brew boilers support efficient two-group commercial operation. |
Commercial Rotary Pump The Italian Fluid-o-Tech FOT PA204 rotary pump provides stable water delivery for professional 9-bar extraction. |
| Independent Brewing Control Each group supports separate temperature, pre-infusion and extraction-volume adjustment. |
Commercial Construction Stainless-steel housing, 304 stainless-steel boilers and wood-finish side panels combine durability with a distinctive appearance. |
Programmable Commercial Controls
- T5 programmable control system with PID temperature management
- Independent brewing temperature adjustment from 88°C to 95°C
- Adjustable pre-infusion time from 1 to 9 seconds
- Programmable single-cup and double-cup extraction volumes
- Independent activation and control of each brewing group
- Italian GICAR flowmeters and commercial VDE valves
- Steam-pressure gauge and two extraction-pressure gauges
- Adjustable steam-boiler temperature and hot-water flow
- Four-hole anti-scald steam nozzle and hot-water outlet
- Large stainless-steel cup-warming surface
- External purified-water connection with inlet and drainage system
Technical Specifications
| Model | ZL08 |
| Product Type | Two-group commercial semi-automatic espresso machine |
| Extraction Pressure | 9 bar |
| Pump | Commercial Fluid-o-Tech FOT PA204 rotary pump |
| Water Supply | External purified-water connection |
| Boiler Configuration | 10 L steam boiler + two 0.8 L brew boilers |
| Maximum Input Power | Up to 5700 W |
| Voltage | 110-240 V, 50/60 Hz; regional configurations available |
| Brewing Temperature | Independently adjustable from 88°C to 95°C |
| Pre-Infusion | Adjustable from 1 to 9 seconds |
| Boiler Material | SUS 304 stainless steel |
| Housing Material | Stainless steel and sheet metal with wood-finish side panels |
| Machine Size | Approximately 755 × 580 × 540 mm |
| Net / Gross Weight | 60 kg / 100 kg |
| Finish Options | Stainless-steel finish with wood side panels; customized finishes by inquiry |
| Warranty | 2-year limited warranty according to supplied terms |
Standard Accessories
The supplied accessory set includes 58 mm portafilters, filter baskets, coffee tamper, cleaning brush, cleaning pad, water-inlet pipe, drain pipe and operation manual. Final quantities should be confirmed before ordering.
Commercial and OEM Applications
Suitable for coffee shops, restaurants, hotels, bakeries, catering operations and professional beverage bars. Contact ZILONG for voltage configuration, customized exterior finishes, branding, packaging and bulk-order requirements.
