ZL08
Zilong OEM Professional Commercial Rotary Pump Coffee Machine Multiple Boilers Programmable Espresso Machine For Shop
ZILONG COMMERCIAL ESPRESSO EQUIPMENT

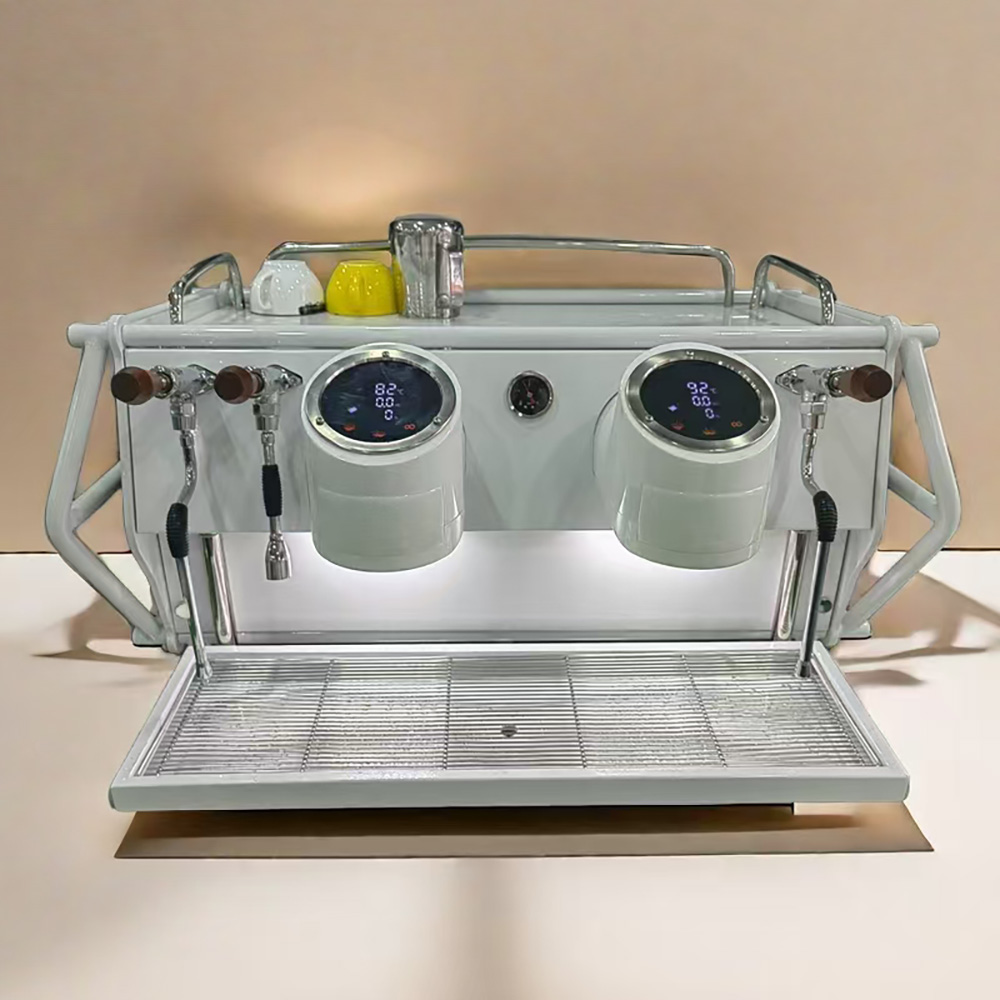

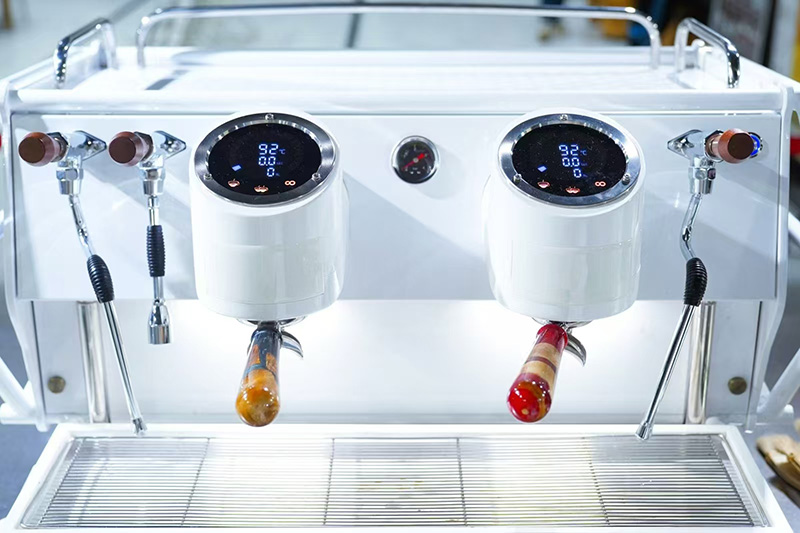

ZL08 Semi-Automatic Espresso Machine
A compact two-group commercial espresso machine combining three independent boilers, programmable extraction controls and a professional rotary pump with a distinctive stainless-steel and wood-finish exterior.
Compact Three-Boiler Performance
The ZL08 uses a 10 L steam boiler and two independent 0.8 L brew boilers. This configuration supports simultaneous espresso preparation, milk steaming and hot-water service while allowing each brewing group to be adjusted independently.
Three Independent BoilersOne 10 L steam boiler and two 0.8 L brew boilers support efficient two-group commercial operation.
Commercial Rotary PumpThe Italian Fluid-o-Tech FOT PA204 rotary pump provides stable water delivery for professional 9-bar extraction.
Independent Brewing ControlEach group supports separate temperature, pre-infusion and extraction-volume adjustment.
Commercial ConstructionStainless-steel housing, 304 stainless-steel boilers and wood-finish side panels combine durability with a distinctive appearance.
Programmable Commercial Controls
T5 programmable control system with PID temperature management
Independent brewing temperature adjustment from 88 C to 95 C
Adjustable pre-infusion time from 1 to 9 seconds
Programmable single-cup and double-cup extraction volumes
Independent activation and control of each brewing group
Italian GICAR flowmeters and commercial VDE valves
Steam-pressure gauge and two extraction-pressure gauges
Adjustable steam-boiler temperature and hot-water flow
Four-hole anti-scald steam nozzle and hot-water outlet
Large stainless-steel cup-warming surface
External purified-water connection with inlet and drainage system
Technical Specifications
Model
ZL08
Product Type
Two-group commercial semi-automatic espresso machine
Extraction Pressure
9 bar
Pump
Commercial Fluid-o-Tech FOT PA204 rotary pump
Water Supply
External purified-water connection
Boiler Configuration
10 L steam boiler + two 0.8 L brew boilers
Maximum Input Power
Up to 5700 W
Voltage
110-240 V, 50/60 Hz; regional configurations available
Brewing Temperature
Independently adjustable from 88 C to 95 C
Pre-Infusion
Adjustable from 1 to 9 seconds
Boiler Material
SUS 304 stainless steel
Housing Material
Stainless steel and sheet metal with wood-finish side panels
Machine Size
Approximately 755 580 540 mm
Net / Gross Weight
60 kg / 100 kg
Finish Options
Stainless-steel finish with wood side panels; customized finishes by inquiry
Warranty
2-year limited warranty according to supplied terms
Standard Accessories
The supplied accessory set includes 58 mm portafilters, filter baskets, coffee tamper, cleaning brush, cleaning pad, water-inlet pipe, drain pipe and operation manual. Final quantities should be confirmed before ordering.
Commercial and OEM Applications
Suitable for coffee shops, restaurants, hotels, bakeries, catering operations and professional beverage bars. Contact ZILONG for voltage configuration, customized exterior finishes, branding, packaging and bulk-order requirements.
